MND Modbus Display

This user-friendly display is compatible with select ControlByWeb devices and does more than simply display its sensor’s readings.
Manual

MND Modbus Display

This user-friendly display is compatible with select ControlByWeb devices and does more than simply display its sensor’s readings. Features include the ability to alter sensor settings using the Modbus registry and to power a sensor with its batteries. Works on any Modbus network.


Easy 3-button programming
RS-485: 9600 baud (Modbus RTU)
Local display for up to 10 sensors
Display: 5 digit LCD, 0.4 in. digits


Easy to use
The display is controlled by three buttons that allow you to cycle through, select options, and input data.

Remote Applications
The MND is capable of providing display functions to our remote Internet-connected sensors.

Local Applications
The MND display is also capable of acting as a Modbus Master in exclusively local applications. The display’s 9V battery not only powers the display itself but also supplies power to the connected Modbus sensor.

Upgrade Your Monitoring Experience with Our Versatile Display!

Enhance your ControlByWeb devices with this intuitive display, designed to not only show sensor readings but also adjust settings via the Modbus registry and power sensors with batteries. Compatible with any Modbus network and easily controlled through three simple buttons, it’s perfect for both local and remote applications. Optimize your sensor management—get the display today!
Contact Us

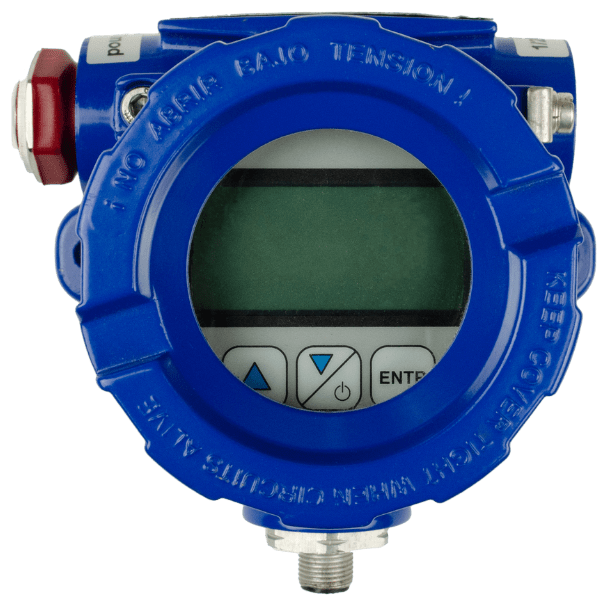

The MND Modbus Network Display provides a local display that can be wired to a local Modbus network or sensor, displaying readings from any of the sensors in the network (up to 10). It is easy to use and very flexible. The MND can operate in either master or sniffer mode. An output relay can be configured to provide power to a slave sensor, allowing for precise sensor power control. With the ability to listen in on master-sensor communication or poll sensors for current readings, the MND provides a valuable display option for your network.

Features

Easy 3-button programming
User-selectable units of measure

Performance

RS-485: 9600 baud (Modbus RTU)
Display readings: Volume | Level | Distance | Pressure

Electrical

Battery Option: 9V Lithium | 3.6V Lithium | Low battery detection with 25% increments
External Power Option: 9-28 VDC

Internet Connectivity

NO CLOUD NEEDED! Remote connection available with ControlByWeb devices (see below)

Specifications

Programming
Automatic programming via ControlByWeb device

Installation
Top of tank | Head pressure | Simple to install and program

Enviromental
Environmental Protection: IP67
Operating Temp: 0°F to 160°F (-18°C to 71°C)
Storage Temp: -30°F to 160°F (-34°C to 71°C)

Physical
Size: 3.25” x 1.6” (82.6 x 40.6 mm)
Display: 5 digit LCD, 0.4 in. digits

Compatible Products

Connect the MND to one of the following ControlByWeb products:

  • X-404 Modbus Master Controller
  • X-404C Cellular Modbus Master Controller
  • MPX Float Sensor
  • PT-500 Pressure Transducers
  • MNU 2424 Mid-Range Ultrasonic Sensor
  • MNU 3434 Long-Range Ultrasonic Sensor
