Real-Time Data With Analog Inputs
- X-412-I,X-412-E

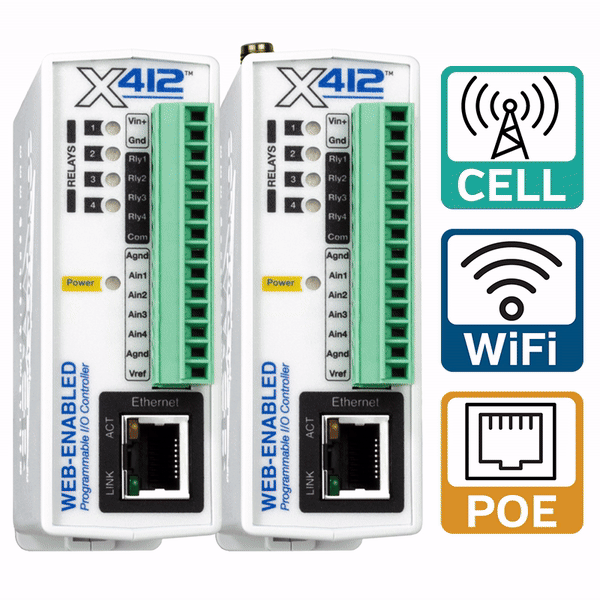

The X-412™ is a powerful analog-to-digital Ethernet I/O PLC. It features 4 analog inputs, 4 relays, up to 16 1-wire sensors, and a built-in web server for infinite control and monitoring possibilities.
- 4 Relays
- 4 Analog Inputs
The X-412 has the same features as our most popular relay controllers combined with analog data capture. It’s a flexible relay module that’s ideal for applications such as measuring liquid levels, flow rates, and other parameters that require real-time visibility.
The X-412 is a versatile Ethernet module with four analog inputs and four relays, ideal for sensor data acquisition and control logic in applications like motors and lighting control.
Accessed through a web browser with no additional software required, it communicates using common protocols like Modbus TCP/IP and HTTP/S, compatible with SCADA software, PLCs, and other systems.
X-412 Features
- Email Notifications
- No-Code Logic Builder
- Peer-to-Peer Communication
- Data Logging
- 400 Series Platform
X-412 Applications
- Water Treatment
- Tank Levels
- Lift Station
- Grain Handling
Specifications
Power Requirements
- Voltage:
- X-412-I: 9-28 VDC
- X-412-E: POE and/or 9-28 VDC
- Max Current: 240mA
Relay Contacts
- Number of Relays: 4
- Max Voltage: 28VAC, 24VDC
- Max Current: 1A
- Contact Type: SPST (Form A)
- Load Type: General Purpose
- Contact Resistance: 1 milliohm max
- Contact Material: AgNi
- Electrical Life: 100K operations (Min)
- Mechanical Life: 5M cycles (Min)
- Environmental Rating: Over voltage Category II, Pollution Degree 2
- Relay Modes: ON/OFF or Pulsed
- Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)
Analog Inputs
- Number of Inputs: 4
- Resolution: 16-bit, SAR
- Type: Single-ended, differential, 4-20mA (0-20mA), or a combination
- Range: ±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA
- Max Input Voltage (Vin): -12.5V < Vin < +12.5V
- Input Impedance (Zin): > 500 Meg Ohm
- Channel Off Leakage: ± 0.6nA (typ)
- Input Common Mode Error: >100dB
- Total Unadjusted Error: -9LSB (min), +9LSB (max)
- Voltage Reference Drift: ± 5ppm/℃
- Internal 4-20mA input shunt: 200-ohm, ±0.1%, 25ppm (uses ±5.12V range)
- Logging Rate 25hz
Real-Time Clock
- Manual or NTP(Network Time Protocol) setup
- NTP Sync Period: Once, Daily, Weekly, On Powerup
- Auto Daylight Savings Adjustment
Capacitor Power Backup
- Backup Functions: Retain Real-Time Clock, External Variables, Relay State, and Counters
- Backup Duration: 24 hours
Network
- Type: 10/100 Base-T Ethernet Port
- Setup: Static IP address assignment. TCP port selectable
Connectors
- Power, Outputs, and Inputs: 14-Position, 3.81mm, Removable
- Network: 8-pin RJ-45
LED Indicators
- Number of LEDs: 7Power on
- Relay coil energized 1-4
- Network linked
- Network activity
Physical
- Operating Temperature: -40°F to 150°F (-40°C to 65.5°C)
- Size:
-
- 1.41in (35.7mm) wide
- 3.88in (98.5mm) tall
- 3.1in (78mm) deep (not including connector)
- Weight: 5 oz (142 grams)
- Enclosure Material: Lexan 940 Polycarbonate Plastic
- Enclosure Flame Rating: UL94 V0
Protocols
- HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP, Remote Services
Logging
- Log File Size: 3072K (Max 50688 logs)
- Storage: Nonvolatile Flash
- Buffer Architecture: Circular Buffer
Advanced Features
- Task Builder
- BASIC interpreter
- Remote services
Password Settings
- Password Length: 6-18 Characters
- Password protection on control page: optional
- Password Encoding Base 64
- Max Password Length 18 Characters
Electromagnetic Compliance
- IEC CISPR 22, CISPR 24
- EU EN55024, EN55022
- X-412-I: FCC 47CFR15 (Class B)
- X-412-E: FCC 47CFR15 (Class A)
Product Safety Compliance
- IEC 61010-1
