Solar Radiation Shield

The Solar Radiation Shield protects temperature sensors from solar radiation and other sources of radiated and reflected heat. Some assembly is required.
Manual

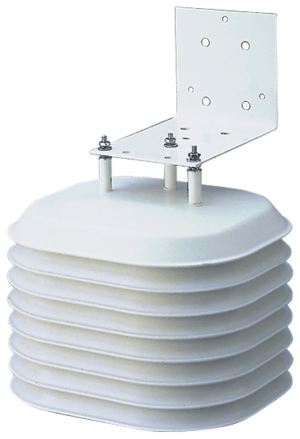

Solar Radiation Shield

The Solar Radiation Shield protects temperature sensors from solar radiation and other sources of radiated and reflected heat. Some assembly is required

Multi-plate construction
May be mounted on metal pipe or wood surface
Easy installation with the Integrated Sensor Suite

The Solar Radiation Shield (DAVIS-7714) protects temperature sensors from solar radiation and other sources of radiated and reflected heat.

DAVIS-7714 safeguards temperature sensors from solar radiation and other sources of heat, including radiated and reflected heat. Please note that some assembly is needed.

Tools and Materials Needed
Small Phillips - head screwdriver and medium slotted-head screwdriver
Wrench or pliers
Drill with 3/16” (4.7 mm) drill bit - To drill pilot holes if attaching radiation shield to the top of a post
Adjustable wrench or 11/32” (8.6 mm) wrench & 7/16” (10.9 mm) wrench - To tighten hex nuts (11/32” wrench) or to drive lag screws into wall or post (7/16” wrench)
Four 1/4” x 1 1/2” (38 mm long) lag screws - To attach radiation shield to a post or wall
Three #8-32 x 1” (25 mm long) screws - To attach radiation shield over the top of a post (if the provided #8 x 2 3/4” pan head screws create clearance problems)
Tape - To hold screws in place when assembling the radiation shield

Maintenance
The effectiveness of the radiation shield will be reduced if the surfaces of the shield are dirty
Wipe the surfaces of the shield with a damp cloth to remove dirt and dust
Keep the areas between the radiation shield plates free of debris that may obstruct air flow, e.g. leaves, twigs, webs, nests
DO NOT remove nesting insects or animals by spraying insecticide or any kind into the radiation shield
This may damage the sensor and the radiation shield

Ensure Accurate Temperature Readings – Shield Your Sensors Today!

Protect your temperature sensors from solar radiation and unwanted heat sources with the Solar Radiation Shield (DAVIS-7714). Easy to assemble, this shield guarantees precision in your readings by mitigating the effects of radiated and reflected heat. Don’t compromise on accuracy—equip your sensors with the best protection now!
Contact Us

Davis radiation shields help maximize accuracy of sensor readings. The passive Raidation Shield (product number 7714) protects temperature sensors from solar radiation and radiated or reflected heat sources. The 24-Hour Fan Aspirated Radiation Shield includes a solar- and battery-powered, motor-driven fan that draws a constat airflow through the sensor chamber. At night, when the effects of radiation are less, the fan runs on battery. This provides more accurate temperature readings than passive shielding alone.

Features

Multi-plate construction
Easy installation with the Integrated Sensor Suite
May be mounted on metal pipe or wood surface

Compatible Products

Davis Temperature Sensors
ControlByWeb Temperature Sensors

Highlights

A temperature probe placed in the direct sun, or where it is exposed to a radiant heat source such as a building or concrete will not provide accurate air temperature readings. This radiation shield is the most effective passive shield available. Multi-plate construction for maximum airflow. Assembly required. May be mounted on a metal pipe or wood surface.
Use with Wireless Temperature Station or Leaf & Soil Moisture/Temperature Station and all temperature sensors used to measure air temperature.
