X-406™ | 1-Wire Multi-Bus Module

The X-406 is a web-enabled temperature and humidity module with four 1-Wire buses for up to 64 sensors
Manual Datasheet

X-406™ | 1-Wire Multi-Bus Module

The Ultimate Temp & Humidity Monitoring Solution

The X-406 is a fully-featured, web-enabled temperature and humidity module with four, independent 1-Wire Buses. Monitor, chart and log up to 64 temperature and humidity sensors with email alerts and web interface. No software required, no programming necessary, and no subscription to buy. The X-406 is also compatible with the other X400 series modules.  Supports many industrial protocols such as Modbus, SNMP, XML.

4 independent 1-Wire Buses for up to 64 sensors

Experience top-notch temperature and humidity monitoring with the X-406™!

This web-enabled module offers four independent 1-Wire Buses, supporting up to 64 sensors. Enjoy easy monitoring, logging, and email alerts with no software or subscriptions required. Upgrade your system today!
Contact Us

The X-406™ is a four-channel temperature and humidity monitoring module that supports up to 64 sensors in total (16 sensors per channel). Up to 64 Temperature Sensors

Features

Email Notifications
Customizable Web Dashboard
Robust Data Logging
Peer-to-Peer Communication
400 Series Platform

Applications

Server Rack Temp Monitoring
Room Temp Monitoring
Commercial Refrigerator Monitoring
HVAC Monitoring

Temperature Sensors

Maximum Number of Sensors: 64
Type: Digital 1-Wire (Maxim Semiconductor DS18B20)
Temperature Range: -67°F to 257°F (-55°C to +125°C)
Accuracy: ±0.5°C (from -10°C to +85°C)
Sensor Functions: Monitor Temperature, Log Temperature, Email Alerts, SNMP Traps
Humidity Type: ControlByWeb Model X-DTHS-P sensor
Humidity Range: 0-100% RH
Accuracy: ±2%
Max Cable Length: 600 feet (180m) maximum combined cable length

Built-in webserver

The X-406 has a built-in web server so it can be set up, controlled and monitored using a standard web browser. You can also use the Xytronix CBW Mobile smartphone app.

Logging & Graphing

Record in real-time and display historical data right in the web-server.
Set up the unit to send you daily logs for a quick look at conditions or to import into other systems

Alerts

Custom emails or SMS alerts based on user defined triggers. For example, send alerts when temperature reaches a threshold.

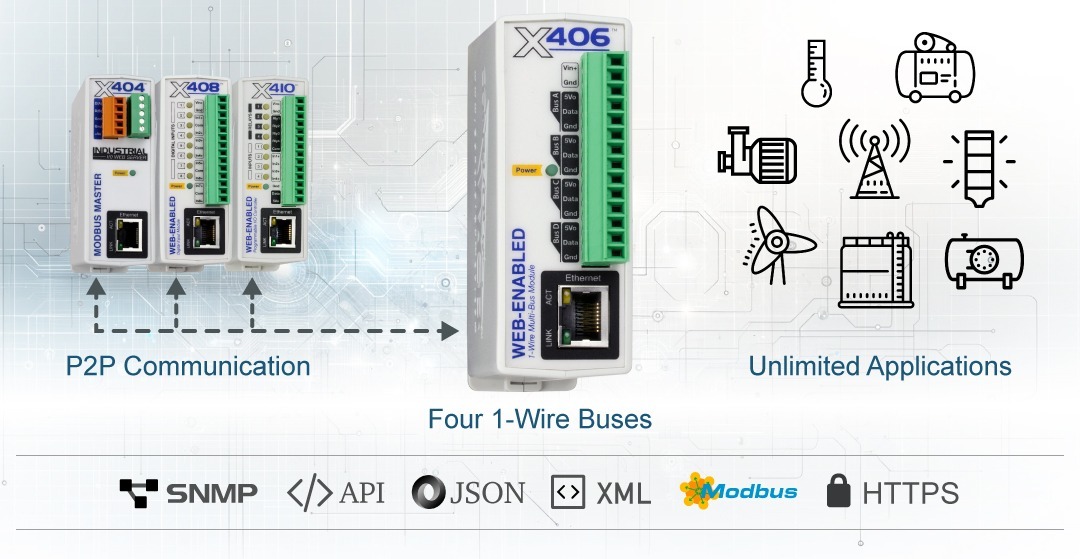

Peer-2-Peer Comm

Link the X-406 to other ControlByWeb devices to control them. Up to 32 external devices can be controlled, with up to 100 unique I/Os
